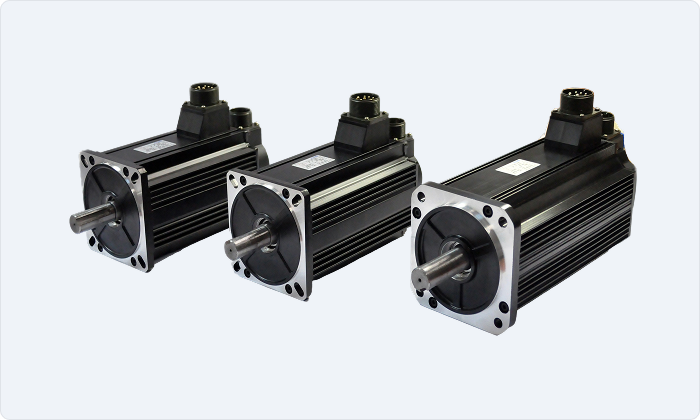

KANS Series
48V DC
| Servo motor series | KANS | ||||
|---|---|---|---|---|---|
| Flange size (mm) | 100 | 130 | |||
| ModelSpecifications | 10 | 15 | 20 | 30 | |
| Continuous running duty |
Rated output(kW) | 1.0 | 1.5 | 2.0 | 3.0 |
| Rated torque(N·m) | 3.18 | 4.8 | 6.4 | 9.55 | |
| Maximum torque (N·m) | 8.2 | 12 | 16 | 20 | |
| Rated rotation speed(r/min) | 3000 | ||||
| Maximum rotation speed (r/min) | 3000 | ||||
| Rated current (Arms) | 25.4 | 38.6 | 55.4 | 75.3 | |
| Maximum current (Arms) | 70 | 96.5 | 138.5 | 152 | |
220V AC
| Servo motor series | KANS | |||||||
|---|---|---|---|---|---|---|---|---|
| Flange size (mm) | 100 | 130 | ||||||
| ModelSpecifications | 10 | 15 | 20 | 25 | 40 | 45 | 50 | |
| Continuous running duty |
Rated output(kW) | 1.0 | 1.5 | 2.0 | 2.5 | 4.0 | 4.5 | 5.0 |
| Rated torque(N·m) | 3.18 | 4.77 | 6.37 | 7.96 | 12.7 | 14.3 | 15.9 | |
| Maximum torque (N·m) | 9.5 | 14.5 | 19.24 | 23.8 | 37.9 | 42.9 | 47.6 | |
| Rated rotation speed(r/min) | 3000 | |||||||
| Maximum rotation speed (r/min) | 5000 | 4500 | ||||||
| Rated current (Arms) | 7.2 | 9.4 | 13.0 | 15.9 | 24.7 | 28.0 | 28.5 | |
| Maximum current (Arms) | 21.0 | 28.3 | 39.6 | 48.1 | 74.2 | 83.4 | 84.9 | |
