AC Servo motors

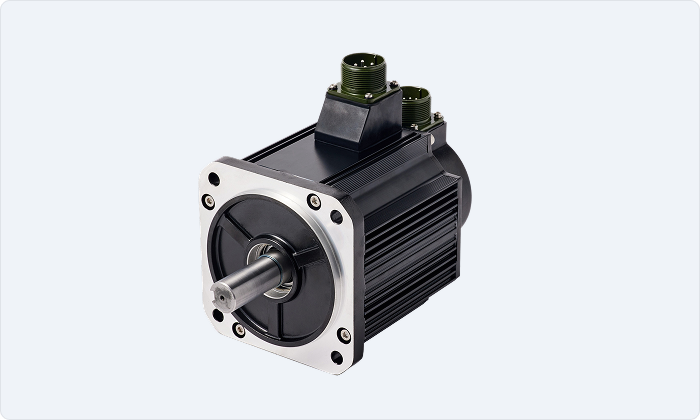

KAND Series
48V DC
| Servo motor series | KAND | |||
|---|---|---|---|---|
| Flange size (mm) | 180 | 180 | 180 | |
| ModelSpecifications | 30 | 40 | 52 | |
| Continuous running duty |
Rated output(kW) | 3.0 | 4.0 | 5.2 |
| Rated torque(N·m) | 14.3 | 19.2 | 25 | |
| Maximum torque (N·m) | 45 | 50 | 50 | |
| Rated rotation speed(r/min) | 2000 | |||
| Maximum rotation speed (r/min) | 2350 | 2000 | ||
| Rated current (Arms) | 72.6 | 96.7 | 132.5 | |
| Maximum current (Arms) | 266 | 265 | 265 | |
220V AC
| Servo motor series | KAND | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Flange size (mm) | 130 | 180 | ||||||||
| ModelSpecifications | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | |
| Continuous running duty |
Rated output(kW) | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 |
| Rated torque(N·m) | 4.77 | 7.15 | 9.55 | 11.9 | 14.3 | 16.7 | 19.1 | 21.5 | 23.9 | |
| Maximum torque (N·m) | 14.4 | 21.5 | 28.5 | 35.5 | 42.9 | 50.0 | 56.4 | 64.3 | 71.4 | |
| Rated rotation speed(r/min) | 2000 | |||||||||
| Maximum rotation speed (r/min) | 3000 | |||||||||
| Rated current (Arms) | 5.6 | 10.15 | 12.3 | 14.0 | 17.8 | 19.6 | 23.4 | 26.2 | 28.0 | |
| Maximum current (Arms) | 17.0 | 28.3 | 36.8 | 42.4 | 53.7 | 56.1 | 70.7 | 78.5 | 84.9 | |
380V AC
| Servo motor series | KAND | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flange size (mm) | 130 | 180 | |||||||||||
| ModelSpecifications | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 75 | 90 | |
| Continuous running duty |
Rated output(kW) | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 5.5 | 7.5 | 9.0 |
| Rated torque(N·m) | 4.77 | 7.15 | 9.55 | 11.93 | 14.3 | 16.7 | 19.1 | 21.5 | 23.9 | 26.3 | 35.8 | 43.0 | |
| Maximum torque (N·m) | 9.54 | 14.3 | 19.1 | 23.8 | 28.6 | 33.4 | 38.2 | 43.0 | 47.8 | 52.6 | 71.6 | 86.0 | |
| Rated rotation speed(r/min) | 2000 | ||||||||||||
| Maximum rotation speed (r/min) | 2000 | ||||||||||||
| Rated current (Arms) | 2.94 | 4.2 | 4.78 | 6.46 | 7.65 | 8.7 | 10.2 | 11.5 | 12.0 | 12.6 | 18.8 | 20.7 | |
| Maximum current (Arms) | 5.9 | 8.4 | 9.6 | 12.9 | 15.3 | 17.4 | 20.4 | 23.0 | 24.0 | 25.2 | 37.6 | 41.4 | |
380V AC
| Servo motor series | KAND | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flange size (mm) | 130 | 180 | |||||||||||
| ModelSpecifications | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 75 | 90 | |
| Continuous running duty |
Rated output(kW) | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 5.5 | 7.5 | 9.0 |
| Rated torque(N·m) | 4.77 | 7.15 | 9.55 | 11.9 | 14.3 | 16.7 | 19.1 | 21.5 | 23.9 | 26.3 | 35.8 | 43.0 | |
| Maximum torque (N·m) | 14.4 | 21.5 | 28.5 | 35.5 | 42.9 | 50.0 | 56.4 | 64.3 | 71.4 | 77.7 | 89.5 | 107.4 | |
| Rated rotation speed(r/min) | 2000 | ||||||||||||
| Maximum rotation speed (r/min) | 3000 | ||||||||||||
| Rated current (Arms) | 3.5 | 5.65 | 7.1 | 7.95 | 9.9 | 12.0 | 12.9 | 15.0 | 16.3 | 18.0 | 23.1 | 28.6 | |
| Maximum current (Arms) | 10.6 | 17.1 | 21.9 | 24.5 | 31.1 | 35.8 | 37.2 | 44.1 | 48.2 | 52.0 | 56.0 | 68.6 | |
