Products
AC Servo motors

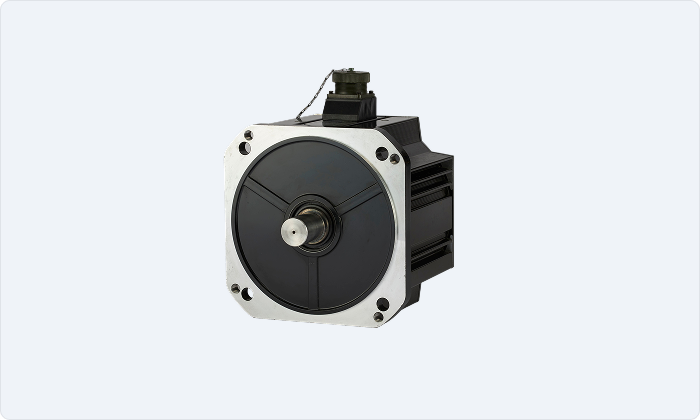

KANK Series
220V AC
| Servo motor series | KANK | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Flange size (mm) | 130 | 180 | |||||||
| ModelSpecifications | 03 | 06 | 09 | 12 | 20 | 30 | 45 | 60 | |
| Continuous running duty |
Rated output(kW) | 0.3 | 0.6 | 0.9 | 1.2 | 2.0 | 3.0 | 4.5 | 6.0 |
| Rated torque(N·m) | 2.84 | 5.7 | 8.62 | 11.5 | 19.1 | 28.4 | 42.9 | 57.2 | |
| Maximum torque (N·m) | 6.3 | 14.4 | 19.3 | 28.0 | 44.0 | 63.7 | 107.0 | 129.0 | |
| Rated rotation speed(r/min) | 1000 | ||||||||
| Maximum rotation speed (r/min) | 2000 | ||||||||
| Rated current (Arms) | 3.5 | 6.2 | 7.6 | 11.6 | 18.5 | 24.0 | 33.0 | 47.0 | |
| Maximum current (Arms) | 7.8 | 15.6 | 17.0 | 28.3 | 42.4 | 56.6 | 83.4 | 109.6 | |
