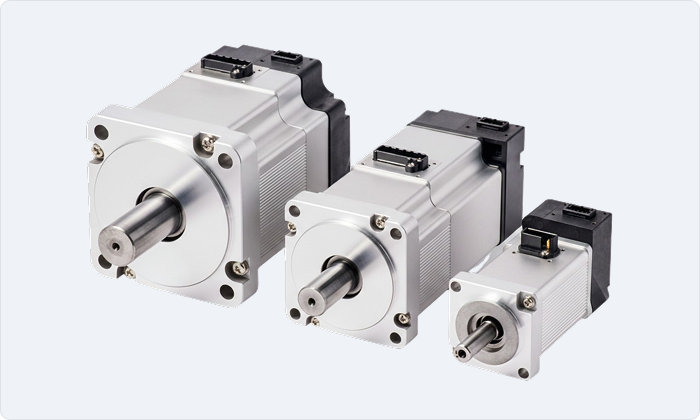

AC Servo motors
KAMZ / KAMQ 시리즈
KANS 시리즈는 1kW ~ 5kW까지의 용량을 제공하며 입력전압으로 220Vac 뿐만 아니라 48Vdc 를 사용할 수 있는 모델도 제공합니다.
48V DC
| Servo motor series | KANZ | KANQ | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Flange size (mm) | 40 | 60 | 80 | 60 | 80 | ||||
| ModelSpecifications | 01 | 02 | 04 | 06 | 08 | 01 | 02 | 04 | |
| Continuous running duty |
Rated output(kW) | 100 | 200 | 400 | 600 | 750 | 100 | 200 | 400 |
| Rated torque(N·m) | 0.32 | 0.64 | 1.27 | 1.92 | 2.39 | 0.32 | 0.64 | 1.28 | |
| Maximum torque (N·m) | 0.64 | 1.38 | 2.7 | 3.84 | 4.78 | 0.64 | 1.34 | 2.56 | |
| Rated rotation speed(r/min) | 2000 | ||||||||
| Maximum rotation speed (r/min) | 3500 | 3400 | 3000 | 3500 | 3400 | ||||
| Rated current (Arms) | 3.33 | 5.39 | 11.9 | 17.5 | 20.76 | 3.05 | 5.4 | 11.22 | |
| Maximum current (Arms) | 6.66 | 11.64 | 24.0 | 34.74 | 41.52 | 6.12 | 11.13 | 22.44 | |
220V AC
| Servo motor series | KAMZ | KAMQ | ||||||
|---|---|---|---|---|---|---|---|---|
| Flange size (mm) | 40 | 60 | 80 | 60 | 80 | 80 | ||
| ModelSpecifications | 01 | 02 | 04 | 08 | 01 | 02 | 04 | |
| Continuous running duty |
Rated output(kW) | 100 | 200 | 400 | 750 | 100 | 200 | 400 |
| Rated torque(N·m) | 0.318 | 0.637 | 1.27 | 2.39 | 0.32 | 0.637 | 1.27 | |
| Maximum torque (N·m) | 1.11 | 2.23 | 4.46 | 8.36 | 0.96 | 1.91 | 2.89 | |
| Rated rotation speed(r/min) | 3000 | |||||||
| Maximum rotation speed (r/min) | 6000 | 5500 | 6000 | 5500 | ||||
| Rated current (Arms) | 0.83 | 1.6 | 2.74 | 4.9 | 0.86 | 1.97 | 2.89 | |
| Maximum current (Arms) | 3.10 | 5.80 | 9.30 | 16.90 | 2.80 | 6.40 | 8.70 | |
